Yarna CWD48 treats the water with electric impulses which are generated in the electronic unit and are controlled by a computerized micro-chip. The signal-frequencies are transmitted via the ULTRA FLAT IMPULSE BANDS™ that are wrapped around the pipe. The bands form a frequency-field that changes the crystals in the water as it flows by. By that the crystals won't stick one to another forming the limescale that breaks your appliances.
The technology works only with capacitive electric impulses.

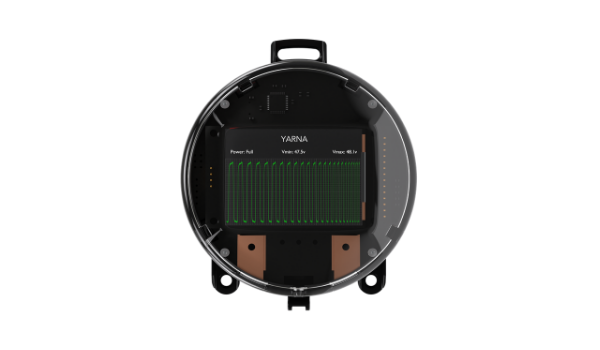

CWD48 model is enclosed with high-grade carbon fiber material with mini-LCD display specialized for both commercial and residential use. Built-in oscilloscope measures device performance in real-time. No more guessing - waveform on display shows your device is 100% working in treating your hard water.
To put it simply, capacitive effect or also known as cathodic protection, is a method that relies on physics principles to protect metal against corrosion. It’s essential for metal pipes, ships, and boats that have to stay a long time in the water. It also offers corrosion protection to steel structures buried in the soil. While this may all sound like industrial nonsense, it’s actually easy to understand why it is crucial.
The fundamental principle behind cathodic protection is to connect an external anode to the metal for its protection. Then, a current passes between them, so that the metal becomes cathodic and does not corrode.
As the water passes through the treated area underneath the two impulse coils, the powerful electric waves break the crystals and transform the minerals into ions. This process results in a significant reduction of limescale deposits that will protect your appliances. And even if limescale eventually builds up, it will be easier to clean.
By using a water descaler, you will successfully protect your pipes from rust without having to handle dangerous currents. The microchip inside the descaler regulates how current flows through the two active coils. It only sends small currents inside your pipes, not on the outside.
FREQUENTLY ASKED QUESTIONS
As the water flows through the treated area (beneath the two impulse coils), the powerful electric waves break the crystals and transform the calcium into ions.
ULTRA FLAT IMPULSE BANDS™
The signal-frequencies are transmitted via the ULTRA FLAT IMPULSE BANDS™ that are wrapped around the pipe.
48V & PCB chip
It treats the water with electric impulses which are generated in the electronic unit and are controlled by a computerized micro-chip.
Very resistant to physical impacts and chemical corrosion, which allow the descaler to withstand heavy use and adverse environmental conditions.
Works with any types of pipes
Works with ANY pipe type up to 4” thick: iron, copper, stainless steel, plastic, PVC, PE-x, compound pipes
One device for the entire house(Small house)
The unit is effective up to 1.2 miles from the installation point along your pipe system.
|Max Pipe Diameter||3/8 - 1"||3/8 - 2"||3/8 - 2"||3/8 - 4"|
|Voltage at Output||24V||24V||30V||48V|
|Induction Wire Length||5 ft||5 ft||5 ft||6.5 ft|
|Power Source||External (wall adaptor)||External (wall adaptor)||Internal||Internal|
|IP Rating||IP54 (Indoor / Outdoor use)||IP42 (Indoor use only)||IP68 (Indoor / Outdoor use)||IP68 (Indoor / Outdoor use)|
|Intended Use||Residential||Residential||Residential||Commercial and Residential|
|Power Cord Length||5 ft||5 ft||6.5 ft||6.5 ft|
|Impulse Bands Length||5 ft||5 ft||5 ft||6.5 ft|
|Enclosure Material||ABS||Aluminum||Carbon Fiber||Carbon Fiber|
|WaveForm Real Time Display||No||No||No||YES 2.5" TFT|
INSTRUCTIONS FOR INSTALLING THE SOFTENER
Secure the main unit to the wall(vertically/horizontally/U-shaped/L-Shaped) by using the screws inside or a double sided adhesive tape(not included in the package). You can also attach the unit to the water pipe using a sticky tape. This device will work by installing it on the outside of the main pipe(independent from the direction of water flow), therefore no tools are required during the installation process.
Connect one of the impulse bands to the device and use a Velcro strap to secure the impulse band to the pipe.
Wind the impulse band around the pipe(clockwise/counterclockwise) producing a coil. Make sure you wind the band tightly to the pipe and place the windings close to each other. Latch the end of the impulse band to the pipe using another zip tie. Now repeat steps 2 and 3 with the second impulse band.
Time to power up the unit. First plug the power adaptor to the main unit, and then connect the power supply to an electrical outlet. There are two diffusers diagnostic light that will come on, showing that both impulse bands are operating normally. Your YARNA water softener works from now on maintenance-free.
